Single Rotary Sheeter Multi Webs
Precision Single Rotary Servo Paper Sheeter High Speed, yon fèy papye ak gwo vitès, segondè presizyon, ak gwo efikasite ki se servo-driven.Li ka koupe woulo anpil, 2 woulo, 4 woulo, 6 woulo, 8 woulo an menm tan an.
Pwodwi Entwodiksyon
Precision Single Rotary Servo Paper Sheeter High Speed, yon fèy papye ak gwo vitès, segondè presizyon, ak gwo efikasite ki se servo-driven.Li ka koupe woulo anpil, 2 woulo, 4 woulo, 6 woulo, 8 woulo an menm tan an.
youn dèyè zòrèy
Paramèt pwodwi
|
Modèl |
CHM-1400 |
|
1. Kalite koupe |
Top lam rotary, anba lam fiks |
|
2. pwa papye |
60-550 GSM |
|
3..bobine dyamèt |
Max 1800mm (71") |
|
4. Fini lajè |
Maksimòm 1400mm (55") |
|
5. Fini fèy-Length |
Min.450-Max.1650 mm |
|
6. Num.of woulo koupe |
2 woulo |
|
7. Koupe presizyon |
±0.5mm (L<1000mm) ±0.1% (L pi gran pase oswa egal a 1000mm) |
|
8. Max.speed nan koupe |
300 koupe/min |
|
9. Max.cutting vitès |
300m% 2fmin |
|
10. Egzijans nan presyon lè a |
0.8MPa |
|
11. Vòltaj |
AC380V/220Vx50Hz |
|
12. Total pouvwa: |
27KW |
|
13. Presizyon fèy papye roulo a |
±0.5mm (L<1000mm);±0.1% (L≥1000mm) ±0.1% (akselere oswa ralanti). Sa depann de machin ki estab ak operasyon lè koupe. (koupe yon woulo papye, longè koupe a dwat) |
|
14. Sòti |
Pwodiksyon reyèl la depann sou materyèl la, ak pwa papye a, ak dwa fonksyone pwosesis |

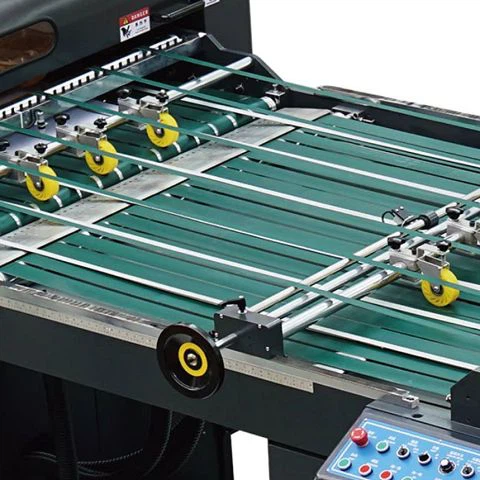

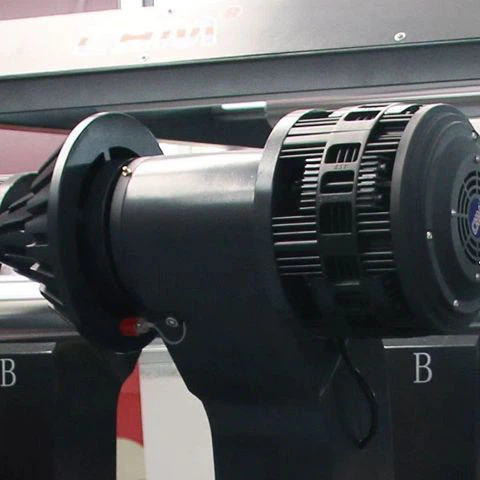

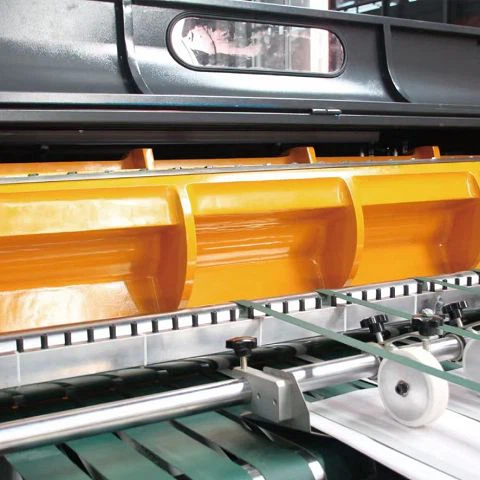

Detay pwodwi
Ekspozisyon pwodwi

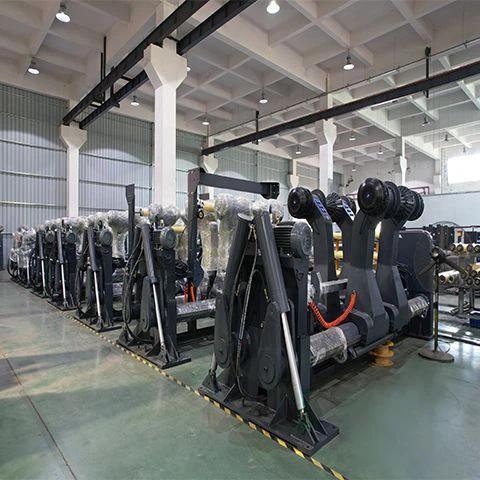

Foto baz pwodiksyon

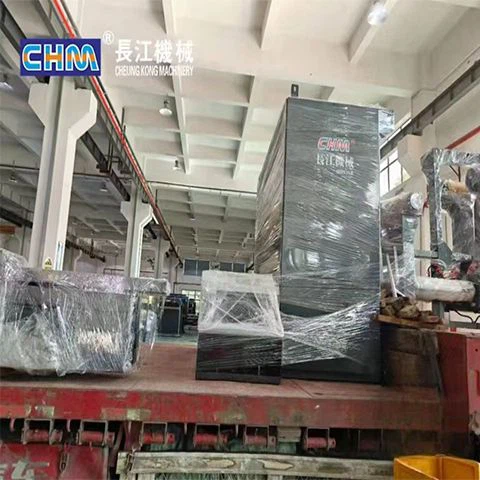

Foto chajman
